Selecting the Easiest Shed Architecture for DIY Construction
Planning an outdoor build begins with selecting a structural geometry that minimizes complicated joinery and hazardous assembly steps. When starting out, many homeowners look to construct dedicated outbuildings as an alternative to off-site rental lockers, much like the spatial transition highlighted in a practical built diy storage guide. For a beginner-friendly project, shedding architectural complexity is essential.
Lean-To vs. Simple Gable: Which Design Minimizes Complexity?
Between standard roof designs, the single-pitch lean-to structure stands out as the most straightforward option for non-professional builders. A lean-to roof angles in a single direction, allowing rainwater and runoff to shed cleanly off the rear or side profile. This single-plane slope completely removes the need to cut and align opposing rafters, center ridge boards, or fabricate intricate trusses.
By contrast, a dual-slope gable roof requires symmetric angle calculations and uniform center alignment across every rafter pair. For a low-friction build, choosing a lean-to profile saves substantial setup time, reduces material waste from miscalculated cuts, and simplifies the attachment of exterior sheathing and corrugated roof panels.
Footprint Sizing and Clearance Considerations
Before sourcing structural lumber, determine a realistic footprint that accommodates your target equipment while maintaining functional perimeter clearance. A compact structure positioned alongside a garage or fence line requires enough surrounding space for door swing pathways, ladder positioning during roof installation, and regular gutter clearance.
- Ensure wall profiles do not obstruct property pathways or natural property drainage channels.
- Leave adequate overhead clearance beneath overhanging tree limbs to protect roof cladding.
- Align the front entry with main garden walkways for smooth transport of heavy rolling machinery.
Foundation Strategies: Low-Effort, Solid Base Options
A sturdy outbuilding relies on a level, moisture-resistant foundation that keeps framing lumber isolated from damp topsoil. Pouring continuous concrete slabs often involves significant labor and specialized tools, but alternative foundation methods offer reliable stability with far simpler workflows.
Treated Wood Skid Bases vs. Concrete Deck Blocks
Ground-contact pressure-treated skids provide an exceptional balance of structural rigidity and portability. These heavy timber rails rest directly on a prepped ground bed, serving as the primary load-bearing runners beneath the floor joists. Because the building sits on runners rather than fixed footings, minor grade adjustments can be addressed beneath the skids without excavation machinery.
Precast concrete deck blocks offer another viable low-effort base. These blocks feature molded top grooves designed to capture standard dimensional lumber, raising the entire subfloor off the ground. This separation creates continuous airflow beneath the floor structure, dramatically reducing long-term moisture accumulation.
Ground Leveling and Drainage Preparation
Even the simplest foundation requires thorough ground prep to prevent shifting or settling over seasonal moisture cycles:
- Clear away loose turf, organic soil, and protruding roots across the designated footprint.
- Tamp down the subsoil firmly before laying a permeable landscape fabric barrier to suppress weeds.
- Spread a layer of crushed gravel or drainage rock across the bed to promote rapid drainage away from timber runners.
- Verify that all base skids or deck blocks sit completely level across both axes prior to fastening the subfloor frame.
Step-by-Step Framing: Building Manageable Wall and Roof Modules
Constructing an outbuilding does not necessitate a full-scale workshop or elaborate jigging tables. As shown in a detailed build diy built guide, accurate framing is achievable using fundamental handheld tools and standardized structural layouts.
Assembling Wall Frames Flat on the Ground
The easiest method for wall construction is assembling individual frames horizontally on top of the finished, level subfloor platform. Working flat allows you to position top plates, bottom plates, and vertical studs with steady leverage before fastening. Checking diagonal corner-to-corner measurements ensures every wall section is perfectly square before it is tilted upright.
Once squared and secured with basic temporary bracing, each wall module is lifted into place, aligned with the subfloor perimeter, and fastened to adjacent corner studs. This modular approach eliminates the struggle of holding loose lumber upright during fastening and produces clean, plumb corners.
Simplified Rafter Cuts and Sheathing Installation
On a single-slope lean-to frame, the rafters simply span across the taller front wall to the shorter rear wall. Instead of complex compound notches, rafters can be secured using standard galvanized framing ties and angled structural screws. Once the rafters are locked down, exterior-grade plywood or structural panels are fastened across the roof frame, creating a rigid structural diaphragm ready for waterproof underlayment.
Budget Materials and Protective Cladding Choices
Selecting exterior materials requires balancing raw material cost, durability against harsh weather, and ease of installation for a single individual.
Sourcing Pallets, Reclaimed Lumber, and Standard Exterior Panels
For budget-conscious builders, engineered vertical siding panels offer a time-saving solution by combining sheer structural strength with pre-primed exterior surfaces. These large sheets cover expansive wall sections rapidly, minimizing the number of exposed seams that need sealing.
Reclaimed wood, disassembled shipping pallets, and salvage dimensional boards can also be utilized for internal bracing, framing spacers, or decorative exterior battens. When using reclaimed timber, prioritize uniform thickness and ensure pieces are clear of embedded hardware prior to cutting.
Moisture Barriers and Long-Lasting Roof Coverings
Keeping interior spaces dry requires deliberate water-shedding layers:
- Apply a breathable house wrap or weather barrier over wall sheathing before attaching outer siding.
- Fasten lightweight corrugated metal or asphalt roofing sheets directly over purlins or solid roof sheathing.
- Use exterior-rated fasteners fitted with neoprene sealing washers to prevent water leaks at penetration points.
- Install perimeter drip edges along roof edges to direct runoff cleanly away from wall cladding.

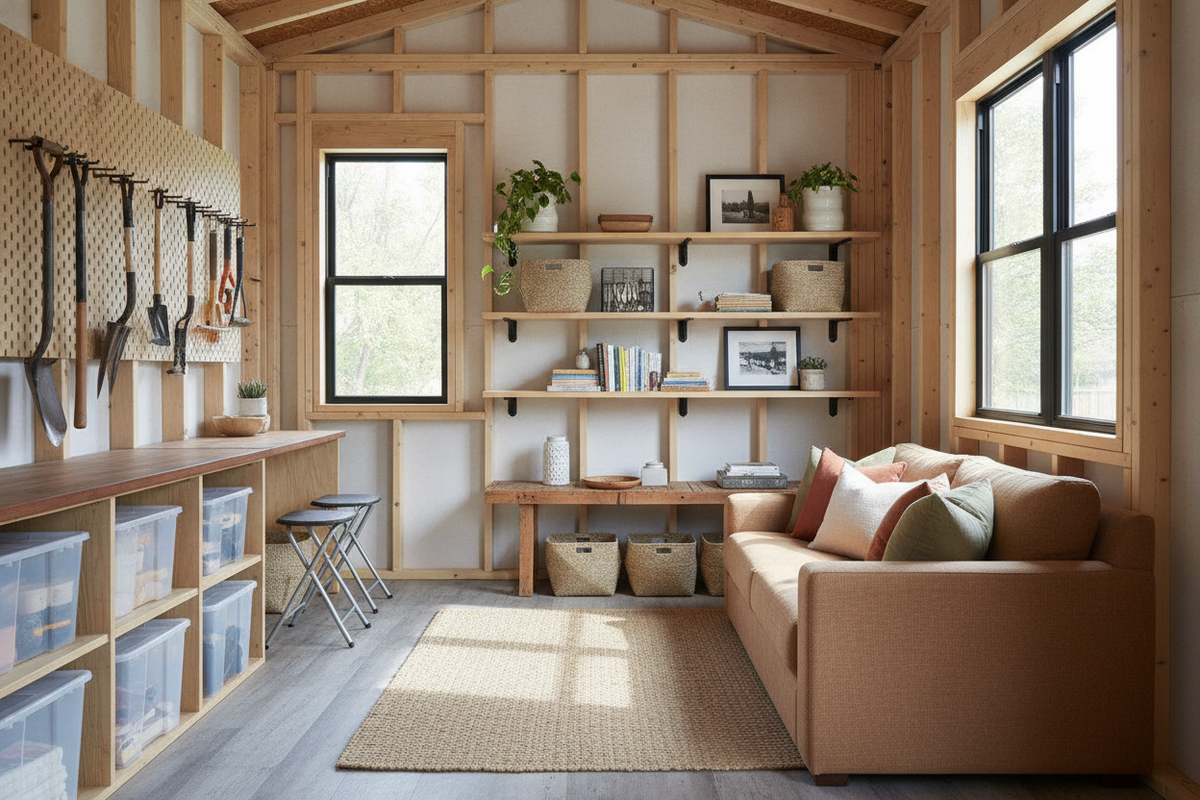

Interior Storage Zoning: Maximizing Usable Space
Once the shed shell is weather-tight, planning the interior layout prevents clutter pile-ups and optimizes vertical wall volume. Efficient organization mirrors the planning seen in customized residential storage setups, such as those covered in an educational built diy storage guide.
Vertical Wall Cleats and Heavy-Duty Shelving Layouts
Utilize exposed wall stud cavities by mounting horizontal cleat systems, heavy-duty brackets, and sturdy shelving boards. Storing long-handled garden implements, extension cords, and small power tools along the upper wall perimeters frees up valuable square footage on the floor.
For bulkier hardware and seasonal containers, install deep perimeter shelves tied directly into structural wall framing studs. Distributing heavy weight across multiple wall studs ensures shelves remain stable over long periods without bowing.
Floor Space Allocation for Lawn Equipment and Workstations
Keep the central floor corridor clear by establishing defined zones for high-traffic items:
- Reserve the immediate entryway zone for primary rolling gear like lawnmowers and wheelbarrows to allow easy entry and exit.
- Position small workbenches or potting stations along walls with natural window light or open access.
- Group seasonal items, surplus potting soil, and secondary garden supplies on top-tier overhead racks out of primary reach paths.
By pairing a simplified lean-to framing plan with durable skid foundations and intentional interior storage layouts, you can successfully construct a resilient, low-maintenance outdoor shed tailored to your property storage needs.
