Core Engineering Principles for Heavy-Duty DIY Shelving
Constructing reliable utility storage requires understanding how weight travels through wood framing into structural supports. When planning a diy heavy duty shelf, the goal is to prevent long-term sag while ensuring lateral stability under unevenly distributed loads.
Understanding Span-to-Deflection Ratios and Load Distribution
Every horizontal surface bends slightly under load. In carpentry, excessive deflection leads to permanent bowing, joint separation, and shelf instability. Wider horizontal spans without intermediate blocking or thicker framing stock will inevitably sag under dense utility bins or heavy machinery. Incorporating perpendicular cross-ribs between front and rear stringers shortens the effective span of the decking material, ensuring that downward force disperses across the entire framework rather than concentrating on a single unsupported point.
Vertical Load Transfer: Posts, Cleats, and Anchored Rails
A heavy-duty framework relies on direct vertical load paths. Fasteners alone should rarely carry shear weight in high-capacity storage; instead, horizontal shelf frames should rest directly on structural posts, notched ledgers, or securely seated supports. For wall-mounted installations, anchoring directly into structural wall studs transfers horizontal pull and vertical downward forces into the building framing. Reviewing a detailed heavy shelves guide helps clarify why relying on drywall anchors without stud integration is unsuitable for substantial storage.
Material Selection: Lumber, Plywood, and Fasteners
Choosing appropriate building materials balances structural rigidity, cost efficiency, and ease of assembly. Standard construction lumber combined with stable sheet goods provides a versatile baseline for robust utility shelving.
Framing Stock vs. Surface Decking Choices
Dimensional softwood lumber provides high strength along its grain, making it the practical choice for perimeter rails, internal ribbing, and vertical corner posts. For shelf surfaces, cabinet-grade or utility-grade plywood and oriented strand board offer substantial resistance to point loading. Plywood maintains cross-laminated strength that resists splitting when fastened near edges, whereas solid wood planks may cup or expand with changing ambient humidity.
Hardware Selection: Structural Screws vs. Standard Fasteners
Drywall screws are brittle and prone to snapping under shear stress, making them unsuitable for heavy storage framework joinery. Heavy-duty builds benefit from heat-treated structural wood screws or heavy construction fasteners with self-tapping threads and wide washer heads. These fasteners draw wood members tightly together and withstand shifting lateral forces without shearing.
Structural Archetypes for DIY Heavy Duty Shelves
Selecting the right architectural style depends on room layout, floor levelness, and intended cargo weight.
The 4-Post Freestanding Ladder Frame
A freestanding four-post unit is versatile and relocatable. The shelves are constructed as ladder-style sub-frames that mount between vertical uprights. For a practical look at building freestanding tiered storage, exploring a dedicated heavy duty shelf guide demonstrates how modular frames accommodate standardized utility totes.
Wall-Cleat and Stud-Integrated Floating Heavy-Duty Racks
Wall-cleat designs anchor rear horizontal rails directly to wall studs, eliminating back posts entirely. Front posts drop down to the floor, or diagonal knee braces transfer weight back toward wall framing. This configuration leaves floor space unobstructed along the back perimeter, making it easier to sweep or store low-profile equipment underneath.
Overhead Suspended and Cantilever Frameworks
Suspended ceiling racks and cantilevered arm systems maximize overhead storage volume. Cantilever systems rely on rigid vertical backbones anchored deeply into wall studs with forward-extending arms supported by diagonal struts. Suspended frameworks hang from ceiling joists using vertical drop-ties, freeing the floor plane completely while keeping overhead access clear.
Step-by-Step Blueprint: How to Build Heavy Duty Shelves
Following a systematic workflow ensures square joints, plumb uprights, and stable horizontal surfaces across the entire structure.
Phase 1: Spatial Layout, Leveling, and Cut Optimization
Begin by measuring the installation footprint, accounting for baseboards, wall plumb variance, and uneven floor surfaces. Mark stud locations along the mounting wall using a dependable finder. Cut all horizontal stringers, cross-ribs, and vertical posts simultaneously in repeatable batches to maintain identical component lengths.
Phase 2: Ladder Frame Pre-Assembly and Corner Joinery
Assemble the horizontal shelf tiers as individual rectangular ladders on a flat work surface. Secure the perimeter rails with structural fasteners, and install intermediate cross-ribs evenly spaced throughout the interior frame. Checking diagonal corner-to-corner measurements confirms that each frame is completely square before fastening.
Phase 3: Upright Installation, Cross-Bracing, and Plumb Alignment
Position vertical uprights and clamp them to the lowest horizontal shelf frame. Use a spirit level to verify plumb alignment before securing the joints. Progress upward, securing subsequent shelf tiers at predetermined heights. Install diagonal cross-bracing across the back or side planes to eliminate racking and maintain rigid rectangular geometry.
Phase 4: Decking Inset, Securing Surfaces, and Top Edge Finishing
Cut sheet decking to fit flush across the framing rails or inset into perimeter rebates. Fasten the decking to the internal cross-ribs and perimeter frame using countersunk wood screws. Fastening the decking firmly turns each shelf into a continuous structural diaphragm that resists twisting under load.
Spatial Optimization and Organizational Zoning
Thoughtful spacing transforms utility shelving from a simple storage rack into an ergonomic organization hub.
Vertical Shelf Clearance Ratios for Utility Bins and Bulky Goods
Standardizing vertical clearance between tiers prevents wasted overhead void space while ensuring storage bins fit comfortably. Placing the heaviest storage containers and dense bulk goods on lower tiers keeps the center of gravity low and reduces physical strain during loading and unloading. Reserve upper tiers for lighter, seasonal, or less frequently accessed items.
Integrating Drawer Cubbies, Hang Rails, and Modular Add-ons
Utility framing easily accommodates modular upgrades. Adding hanging hooks, under-shelf tool slots, or slide-out utility bins along the exterior posts turns perimeter dead space into functional storage. Vertical dividers between shelf bays keep long items organized upright without tipping into adjacent compartments.
Aesthetic Refinement: Bringing Utility Storage Indoors
With careful finishing, robust workshop-style shelving transitions comfortably into craft rooms, pantries, home offices, and basements.
Surface Sanding, Edge Banding, and Moisture-Sealing Finishes
Sanding dimensional lumber removes mill marks, stamps, and rough grain. Applying solid wood edge banding or rounded trim over exposed plywood edges prevents snagging and conceals rough plies. Sealing raw wood surfaces with protective clear coats or durable paint shields against ambient humidity and spills. For tips on refining the visual weight of substantial storage, consulting a make heavy guide offers practical advice on balance and finish.

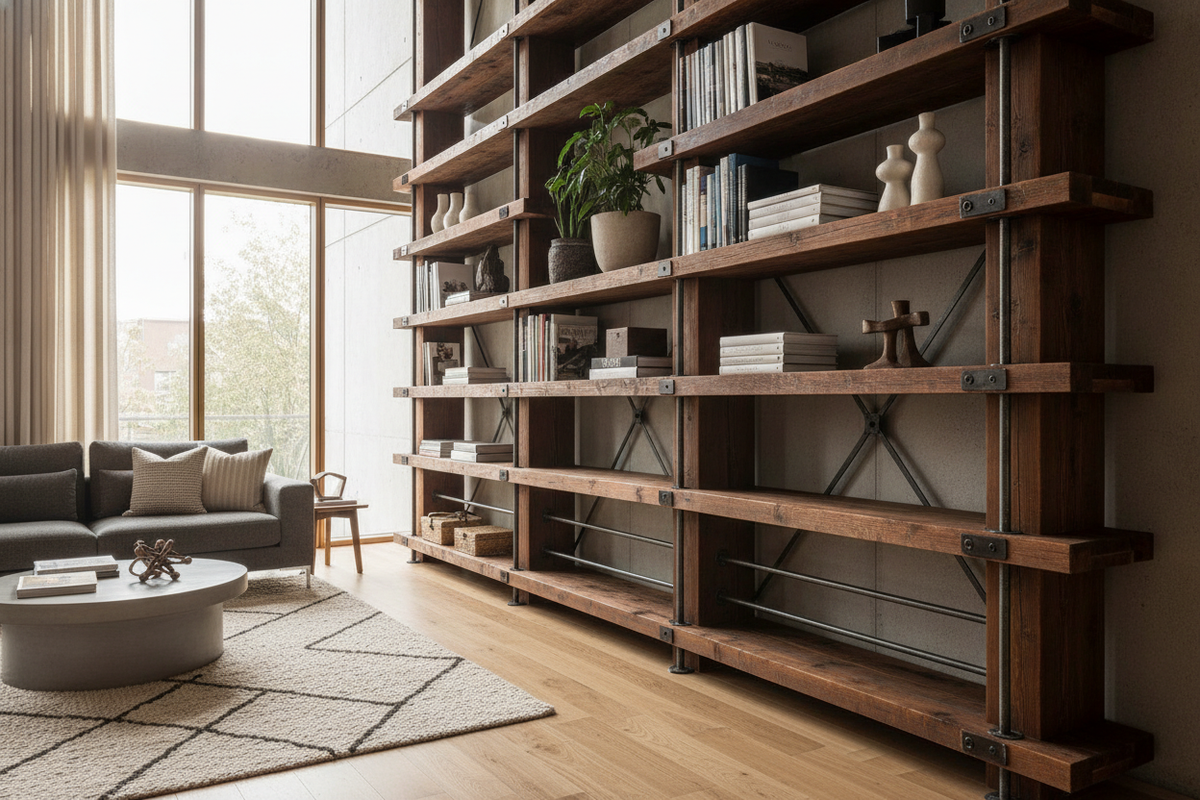

Blending Industrial Frameworks with Finished Living Spaces
When incorporating utilitarian designs into finished rooms, intentional color choices and uniform storage containers establish visual harmony. A dedicated heavy duty shelves guide illustrates how clean paint finishes and warm natural wood tones allow rugged shelving frames to complement contemporary home interiors seamlessly.
