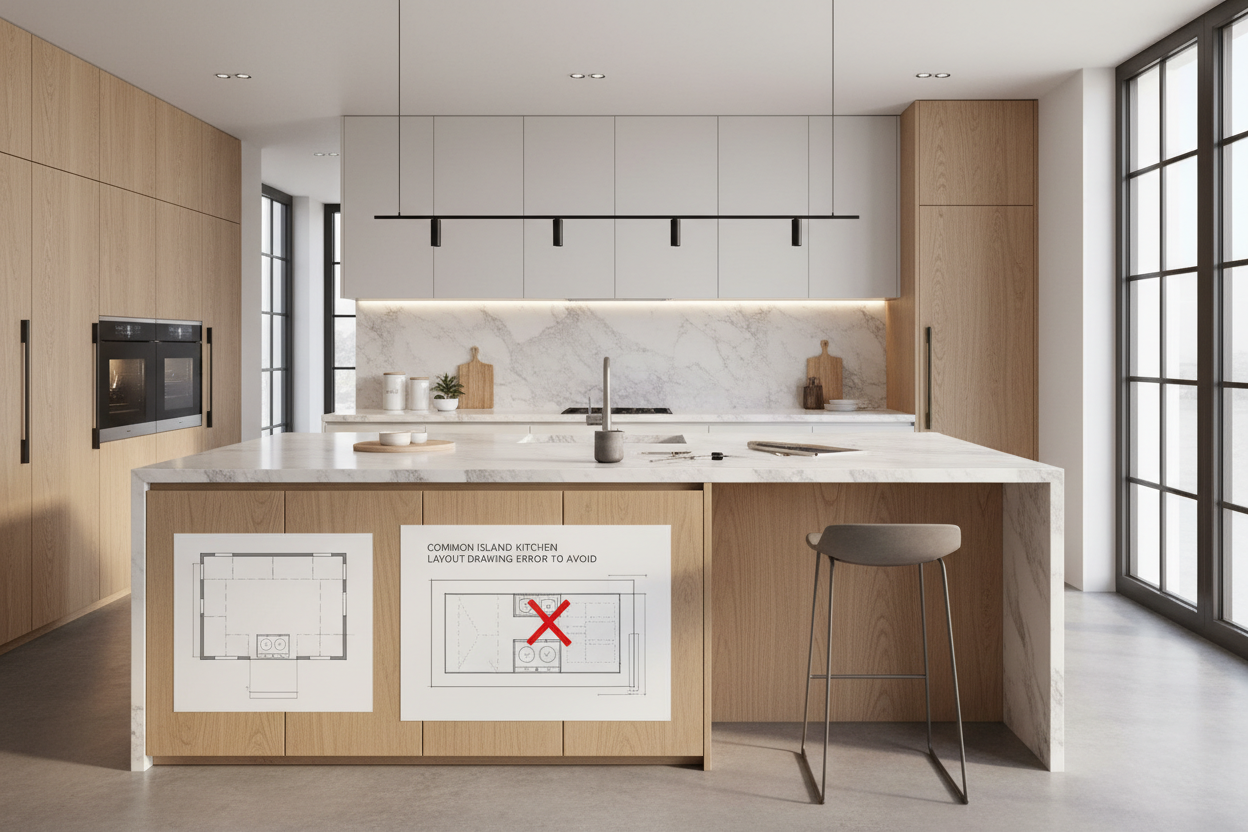

There is nothing quite as frustrating as a kitchen that looks beautiful in a photograph but fails in function. You open the dishwasher, and suddenly, nobody can walk past. Or perhaps the barstools bang against the cabinets opposite them. These are not styling issues; they are architectural failures that start with the island kitchen layout drawing. Before you select that Calacatta marble or the brushed brass hardware, we need to look at the blueprint to ensure your kitchen serves as a functional workspace, not just a showpiece.
Quick Decision Guide: Key Layout Factors
- Clearance Zones: Ensure a minimum of 42 inches of walkway space (48 inches for two-cook kitchens) around the island perimeter.
- Work Triangle Integration: The island should intersect, not obstruct, the path between the sink, refrigerator, and range.
- Seating Overhang: Plan for at least 12-15 inches of knee clearance for comfortable counter-height seating.
- Service Rough-ins: Verify plumbing and electrical locations early; moving a drain line in a slab is costly and difficult.
- Scale and Proportion: The island should occupy no more than 10% to 15% of the total kitchen square footage to maintain visual balance.
Mastering Space Planning and Clearances
When I review a floor plan, the first thing I look for is negative space. Homeowners often try to maximize storage by pushing the island size to the limit, but this chokes the room's flow. Your kitchen island drawing must prioritize traffic lanes over cabinet volume.
Standard clearance is 36 inches, but in a luxury or high-traffic home, that is simply too tight. I always advise clients to aim for 42 inches as a baseline. If you have a range or dishwasher opening toward the island, you need enough clearance to stand beside the open door, not just in front of it. This prevents the dreaded "hip-check" maneuver when loading dishes.
The Importance of the Kitchen Island Detail Drawing
While the floor plan shows where the island sits, the kitchen island detail drawing shows how it functions. This elevation view is where we solve technical challenges.
Cabinetry and Functionality
Are you opting for drawers or doors? Drawers are generally more ergonomic for islands, allowing you to access heavy pots and pans without crouching. The detail drawing should also specify the toe kick dimensions. A recessed toe kick on the working side is essential for comfort, but on the seating side, you might opt for a furniture-style baseboard for a more polished, integrated look.
Countertop Support and Overhangs
If you plan on seating, the structural support in your drawing is non-negotiable. Stone is heavy and brittle. An overhang greater than 10 inches usually requires steel support brackets hidden within the millwork. Neglecting this detail can lead to sagging countertops or, worse, cracking stone.
Materiality and Visual Weight
The layout drawing also dictates the visual weight of the piece. A solid block island can feel heavy in a smaller kitchen. In these instances, I might suggest an open-shelf design or an island on legs to allow light to pass through, making the footprint feel airier.
Conversely, in a large, open-concept space, you need an island with "grounding" presence. This is where we might detail waterfall edges—where the countertop material cascades down the sides to the floor. This creates a monolithic, sculptural aesthetic that anchors the room.
Lessons from My Own Projects
Years ago, I designed a kitchen for a client who fell in love with a massive, double-wide island she saw in a magazine. Against my initial advice regarding the kitchen island drawing, we pushed the clearance down to 38 inches to accommodate the width she wanted. On paper, it looked passable.
However, once the cabinetry was installed, the reality set in. The refrigerator was a French-door model, and when the doors were open, it created a pinch point that made it impossible for anyone else to pass. We ultimately had to downsize the island top and rework the cabinetry on site—a costly fix. Now, I carry a tape measure to every meeting and physically mark out 42 inches on the floor so clients can feel the space before they approve the drawings. It’s a tactile reminder that inches on paper translate to comfort in reality.
Conclusion
Your kitchen island is likely where you will spend the majority of your time, from prepping meals to hosting guests. By prioritizing accurate clearances and thoughtful detailing in your layout drawings, you ensure the space feels as good as it looks. Take the time to get the blueprint right, and the rest of the design will fall into place naturally.
Frequently Asked Questions
What is the minimum size for a functional kitchen island?
Generally, an island should be at least 4 feet long and 2 feet deep to be useful. Anything smaller tends to look like a cart and lacks sufficient counter space for prep work or safe cooktop installation.
Does a kitchen island need to be centered in the room?
Not necessarily. It is more important to center the island relative to the perimeter cabinetry or a focal point, like a range hood or window, rather than the geometric center of the room. Alignment with work zones is priority number one.
How do I handle electrical outlets in an island layout?
Building codes typically require at least one outlet on the island. To keep the aesthetic clean, I recommend specifying pop-up outlets in the countertop or tucking them into the side panel just under the overhang, so they don't disrupt the waterfall edge or cabinet face.
