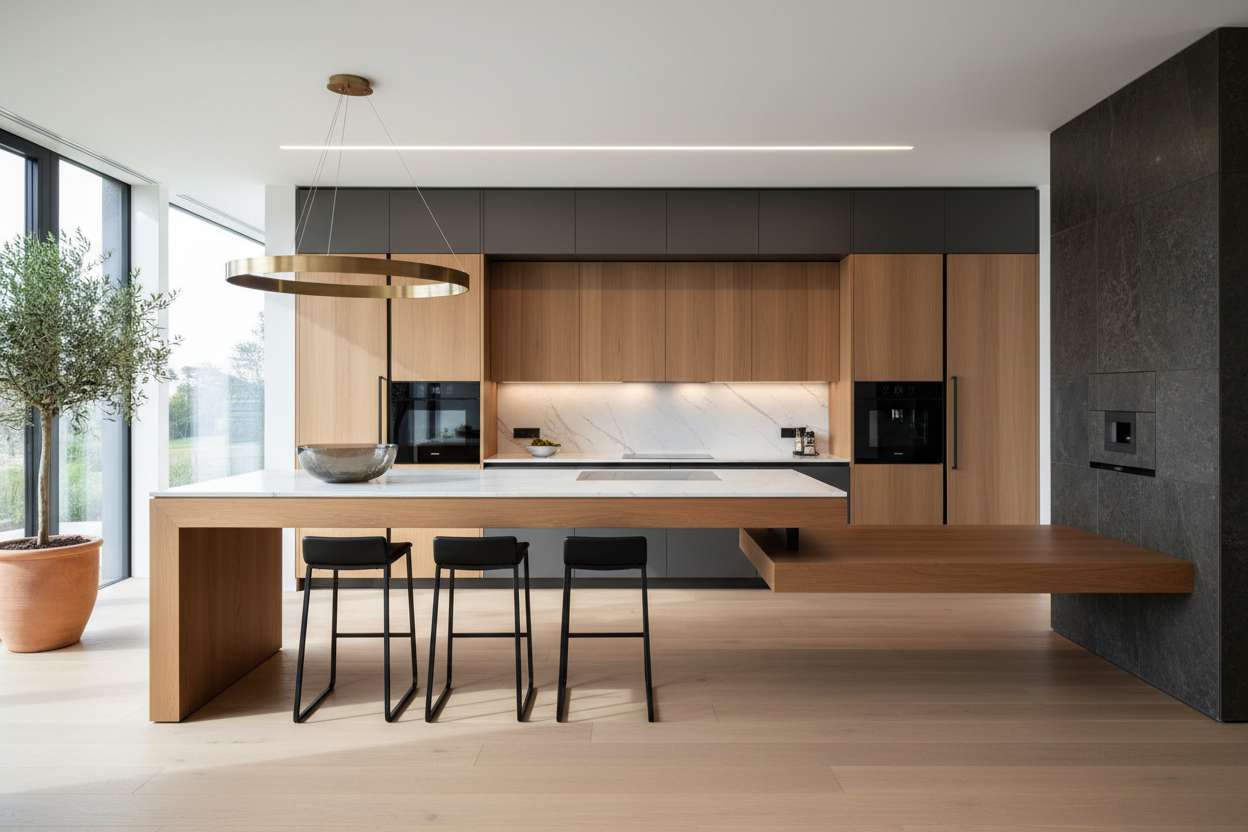

We often treat the kitchen island as a monolithic block—a heavy, grounding force in the center of the room. While functional, these boxy structures can sometimes suck the visual air out of a compact footprint or feel too utilitarian in an open-concept living space. The design solution lies in structural engineering meeting high-end aesthetics: the cantilevered island.
By extending the countertop beyond its base without visible vertical supports, we create a silhouette that feels lighter, more architectural, and undeniably sophisticated. However, achieving this gravity-defying look requires more than just gluing a slab of stone to a cabinet. It requires a balance of physics, material selection, and precise installation.
Quick Decision Guide: Key Features to Look For
- Structural Reinforcement: Does the design utilize hidden steel L-brackets or flat plates routed into the cabinetry?
- Countertop Tensile Strength: Is the material (e.g., Quartz, Granite) strong enough to handle the overhang without cracking?
- Overhang Depth: Standard seating requires 12-15 inches; anything deeper requires aggressive structural support.
- Base Weight & Anchoring: The cabinet base must be heavily anchored to the subfloor to prevent tipping when weight is applied to the edge.
Engineering the Illusion: Support Systems
The most common misconception clients have is that the stone supports itself. Natural stone has high compressive strength but poor tensile strength. If you lean on an unsupported marble edge, it will snap.
Hidden Steel Supports
To achieve that clean, leg-free look, we almost always intervene with steel. For overhangs between 10 to 18 inches, flat steel bars (usually 1/2 inch thick) are routed into the top of the cabinet box before the stone is laid. This creates a hidden skeleton that absorbs the load. If you are aiming for a dramatic overhang of 24 inches or more for a dining table setup, we move to structural steel frames integrated into the chassis of the island.
Material Selection & Visual Weight
Not all stones are created equal when it comes to cantilevering. While we love the look of natural Marble, it is softer and more prone to fissures than engineered stones.
Quartz: Generally the safest bet for significant overhangs. Its resin binder provides slight flexibility (though imperceptible) that makes it less brittle than natural stone.
Porcelain Slabs: These are trending for their lightness and durability, but they are thin. To cantilever porcelain, it must be mounted on a substrate (like plywood or distinct architectural foam) to give it the necessary rigidity.
Ergonomics and Flow
Beyond the structural requirements, the cantilevered island solves a major ergonomic issue: knee knocking. Traditional corbels or bulky legs often restrict movement. A cantilevered design offers a clean sweep underneath, allowing for wider bar stools and easier ingress and egress.
However, you must consider the "tip factor." The island cabinet must be secured to the floor joists. I have seen poorly installed islands lift slightly off the floor when a heavy guest leans on the overhang. This is a critical safety check during the rough-in phase.
My Personal Take on Cantilevered Islands
I learned a very specific lesson about cantilevered islands during a penthouse renovation in Chicago a few years back. We designed a stunning Calacatta Gold island with a massive 16-inch overhang supported by invisible steel plates. It looked perfect from a standing position.
However, once the client sat down, they noticed something I had overlooked: the texture of the stone's underside. Most slabs are polished on top but rough and mesh-backed on the bottom. When you have a cantilevered design, people's hands naturally wander to the underside of the ledge, and their knees might brush against it. It felt unfinished and gritty, like sandpaper against silk stockings.
Since then, I always specify a "honed return" or a finished underside for the exposed overhang portion. It’s a subtle tactile detail, but luxury is defined by what you feel, not just what you see.
Conclusion
A cantilevered island is an investment in both engineering and style. It clears visual clutter, elevates the perceived value of the kitchen, and provides superior seating comfort. Just remember: the magic isn't in the stone, it's in the steel hiding beneath it.
Frequently Asked Questions
How far can a quartz countertop overhang without support?
Generally, quartz manufacturers allow an overhang of up to 14 inches without additional support, provided the material is 3cm thick. However, as a designer, I always recommend hidden steel supports for anything over 10 inches to prevent sagging or accidental breakage over time.
Is a cantilevered island safe for families with children?
Yes, provided it is anchored correctly. The biggest risk is not the stone breaking, but the island tipping if a child climbs on the edge. Ensure your contractor uses heavy-duty floor anchors and that the cabinet-to-countertop adhesive bond is industrial grade.
Does a cantilevered design cost more than a standard island?
Typically, yes. While you save money by not buying decorative legs or corbels, the cost of custom steel fabrication and the additional labor to route out the cabinetry usually results in a slightly higher price point, but the modern aesthetic is often worth the difference.
